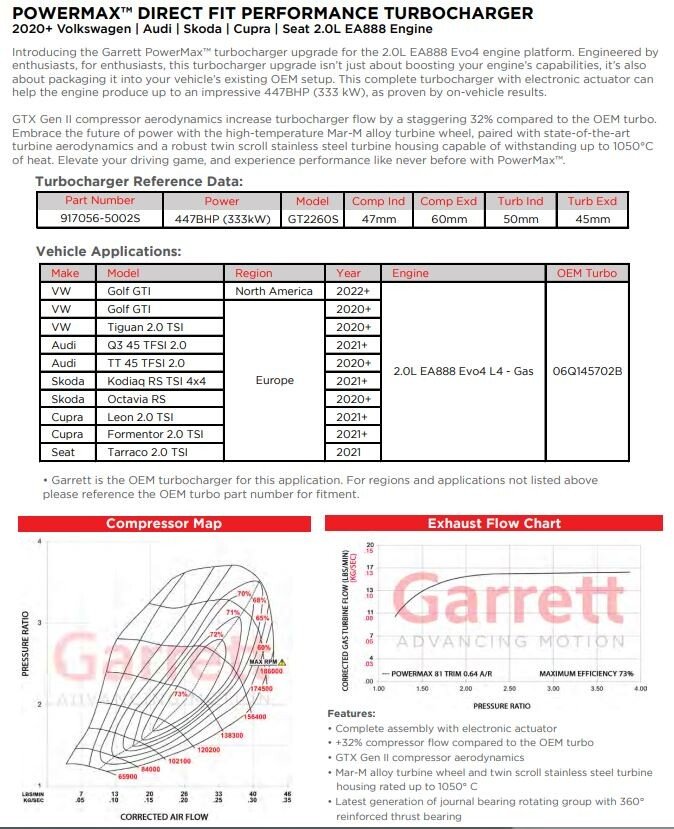

Garrett PowerMax turbocharger: new power and performance level! Turbocharger number: 917056-5002S Manufacturer: Garrett Motion
The 917056-5002S turbocharger replaces the original weaker turbocharger number:
06Q145702B (OEM);
882656-0007 (Garrett Original Turbo Number);
882656-5007S (Garrett Aftermarket Turbo Number).
A turbocharger number 917056-5002S can be mounted on the following cars:
VW GOLF GTI 2.0L EA888 EVO4 L4 452KM/333KW 2020-
VW Tiguan 2.0L TSI EA888 EVO4 L4 452KM/333KW 2020-
AUDI Q3 45 2.0L TFSI EA888 EVO4 L4 452KM/333KW 2021-
AUDI TT 45 2.0L TFSI EA888 EVO4 L4 452KM/333KW 2020-
Skoda Kodiaq RS 4x4 2.0L TSI EA888 EVO4 L4 452KM/333KW 2021-
Skoda Octavia RS 2.0L EA888 EVO4 L4 452KM/333KW 2020-
Cupra Leon 2.0L TSI EA888 EVO4 L4 452KM/333KW 2021-
Cupra Formentor 2.0L TSI EA888 EVO4 L4 452KM/333KW 2021-
SEAT TARROCO 2.0L TSI EA888 EVO4 L4 452KM/333KW 2021-
GTX Gen II compressor aerodynamics increase turbocharger flow by a staggering 32% compared to the OEM turbo. Embrace the future of power with the high-temperature Mar-M alloy turbine wheel, paired with state-of-the-art turbine aerodynamics and a robust twin scroll stainless steel turbine housing capable of withstanding up to 1050°C of heat . Elevate your driving game, and experience performance like never before with PowerMax™.
WARNING: The maximum allowable turbocharger speed is 186 krpm . The use of this product above max turbocharger speed is at the owner's risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors are sold separately.
For turbocharger installation please follow the OEM service manual. Recommendation for elongation of the venturi injector wire heat shroud on Garrett PowerMax turbo installations.
- Venturi Injector and harness. Wire heat shroud
- To elongate the venturi injector wire heat shroud, apply gentle heat approx 2-3 inches (5-15cm) away from the wire heat shroud until the shroud can be elongated to desired length. (Caution: Overheating may result in damage to wire shroud and wires)
- Tape should be used in the area where the wire shroud is close to the engine block for wear protection.
