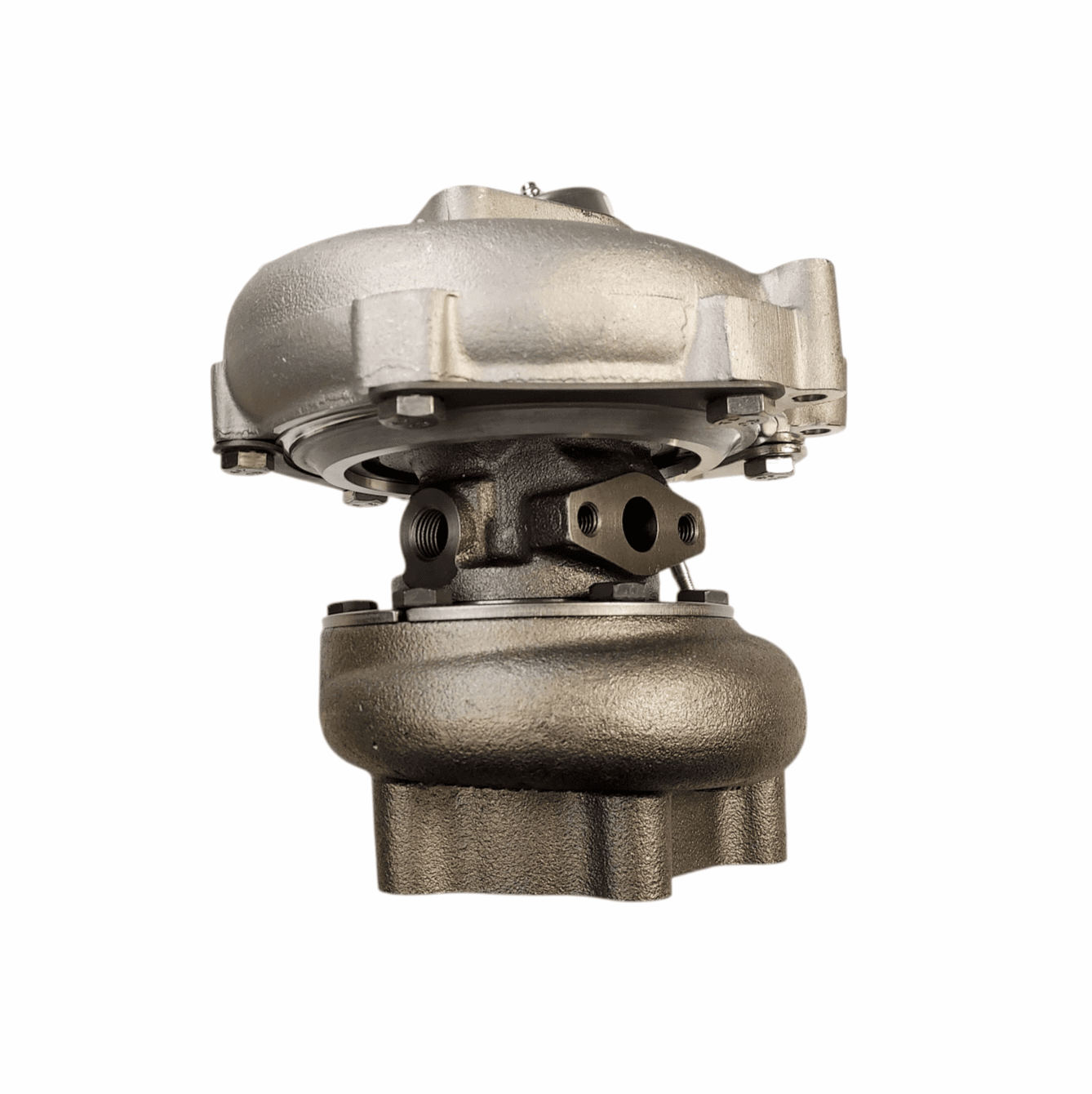

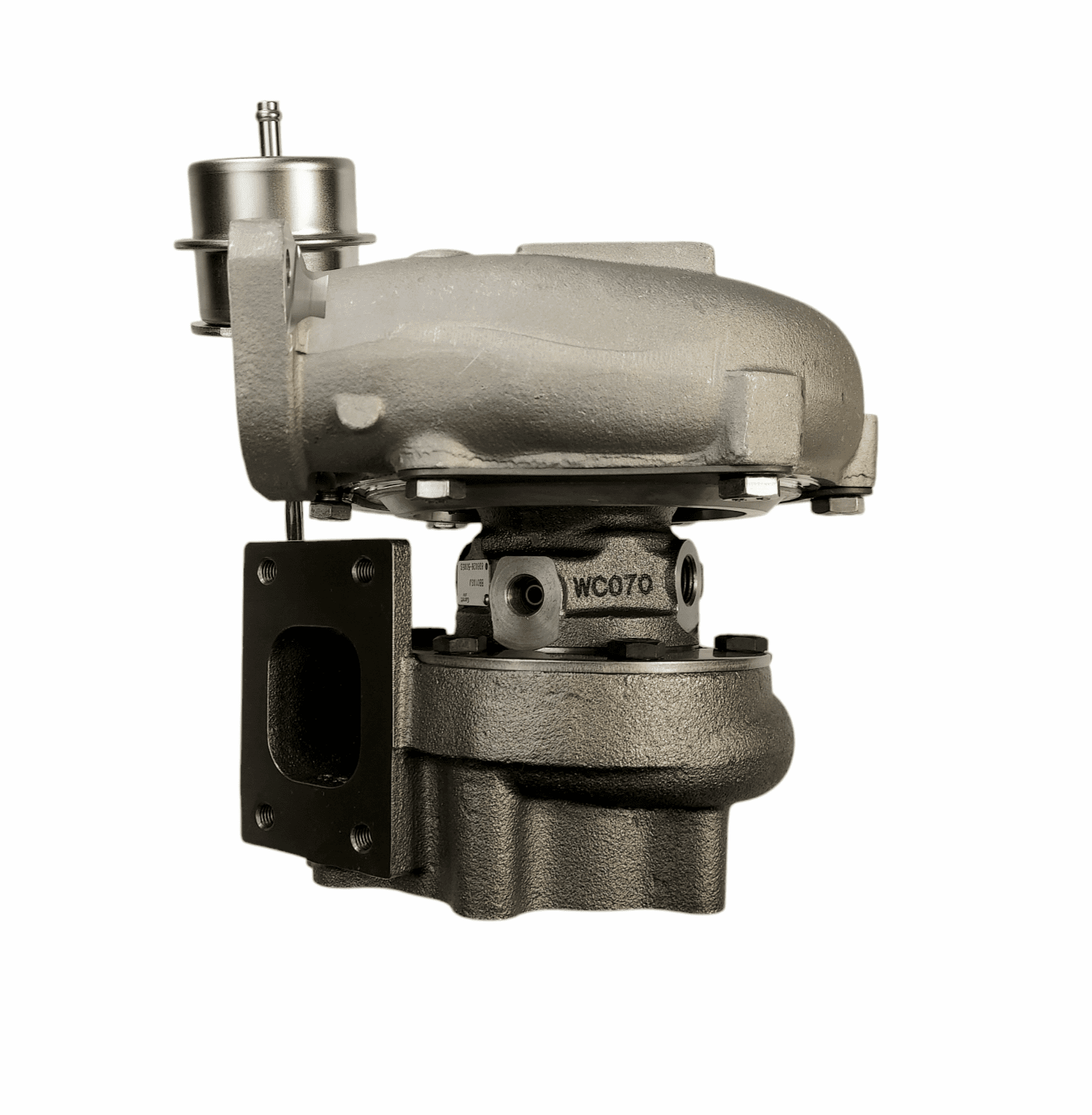

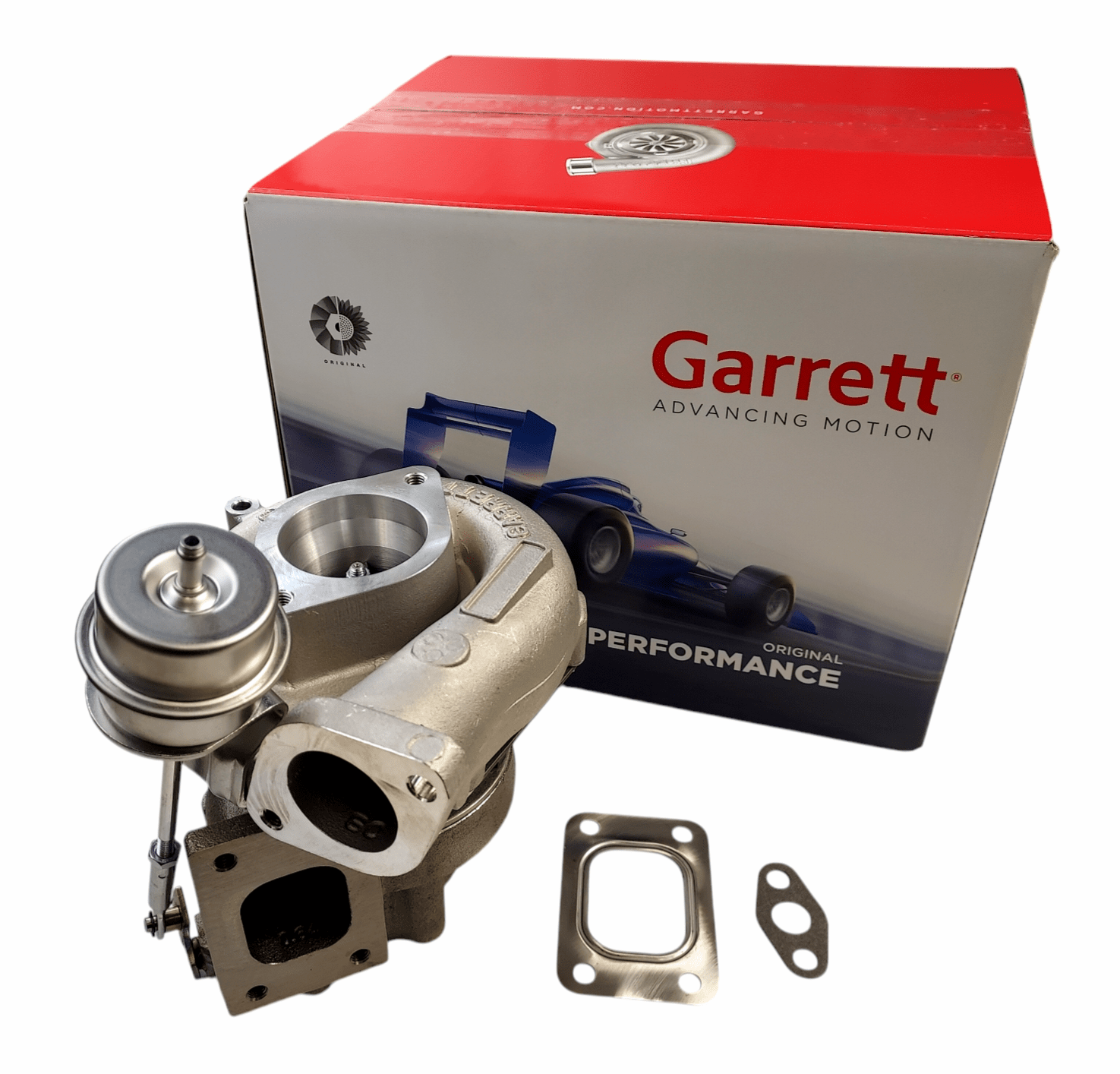

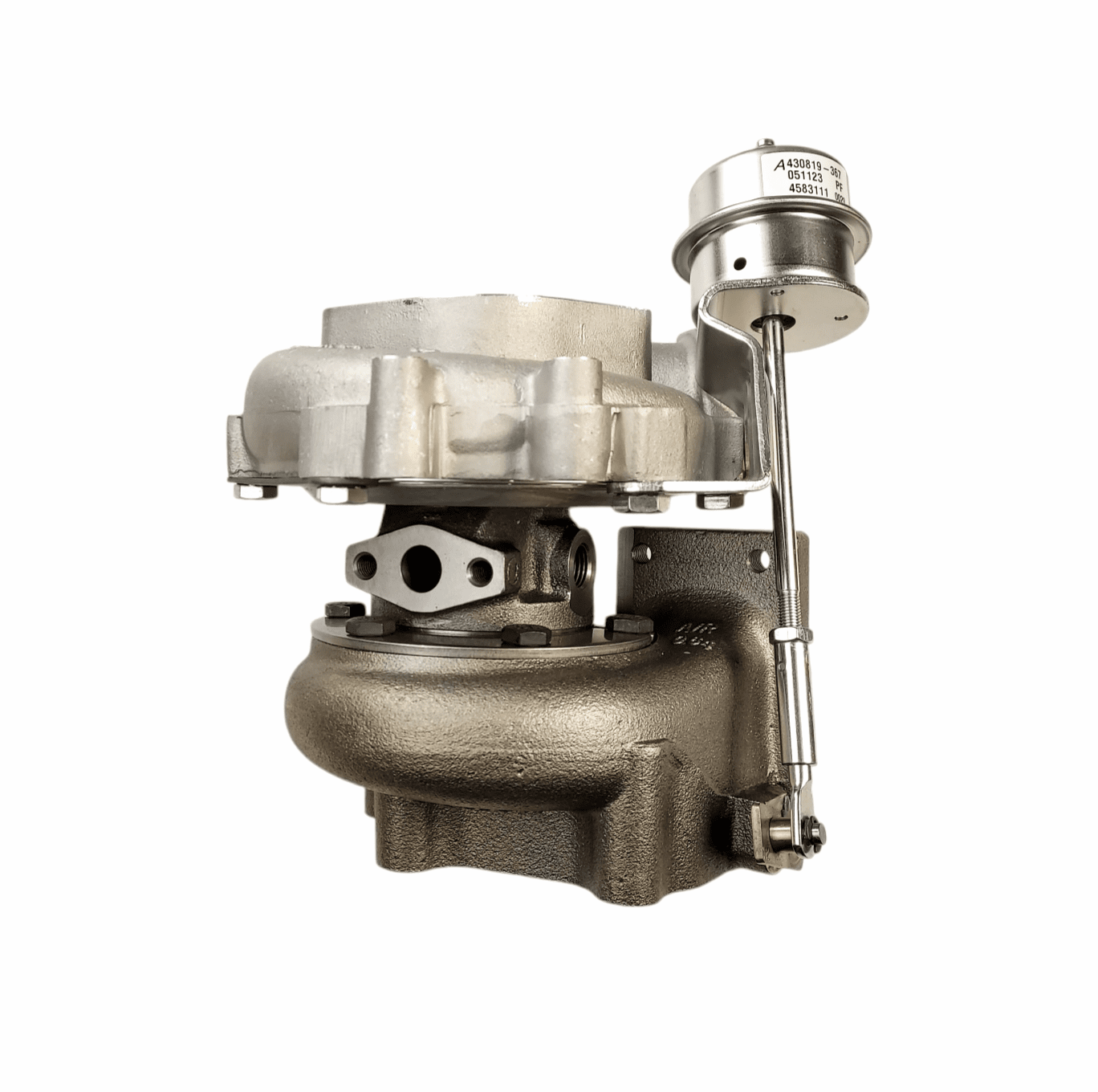

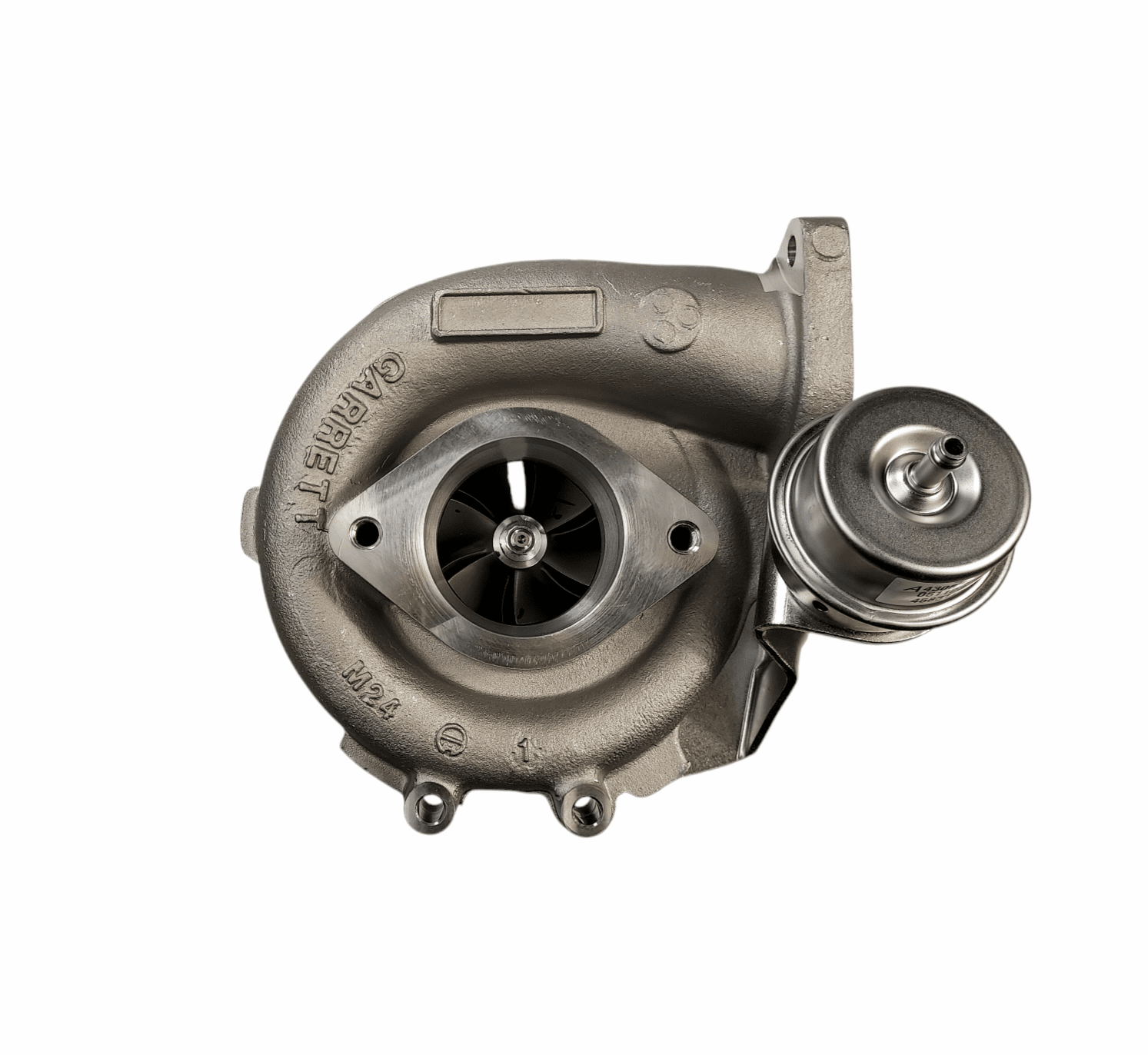

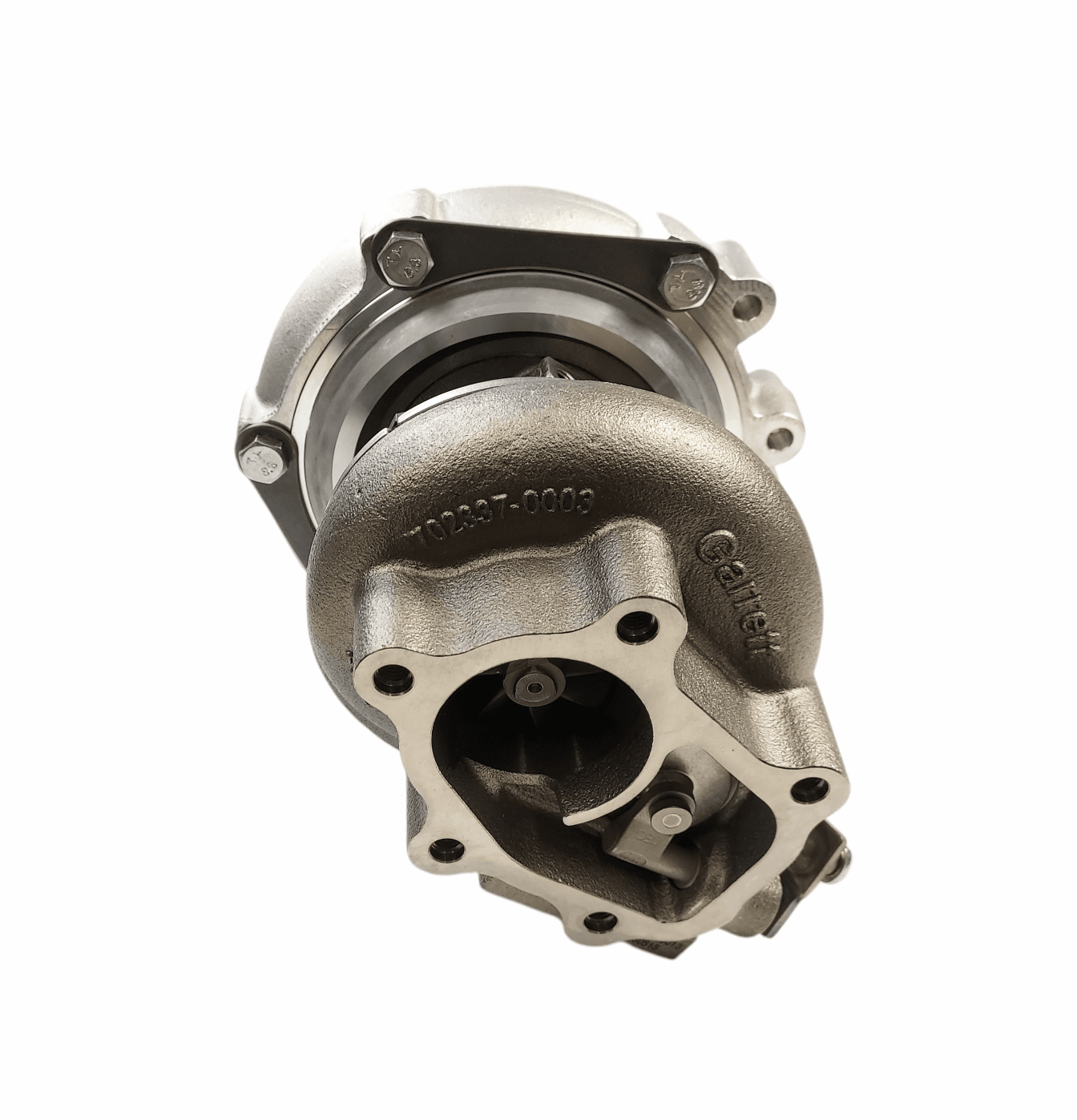

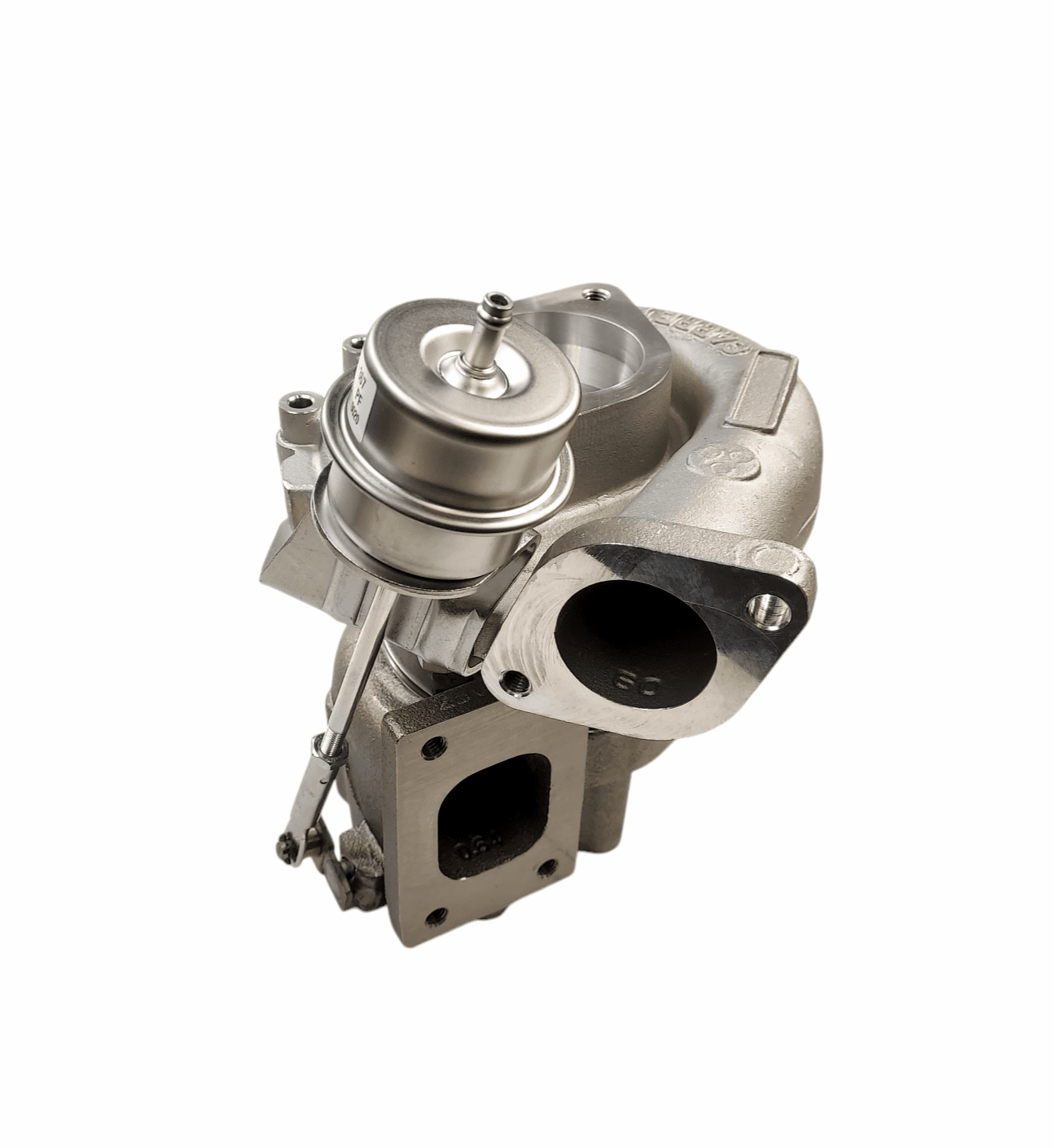

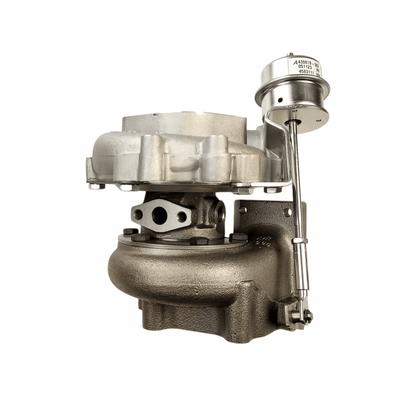

836026-5005S New Turbocharger

Part No.

707160-0005, 707160-5, 707160-5005S, 739548-5006S, 836026-5005S, GT2860R, GT2860RS

Suitable For:

Technical characteristics for GT Series GT2860R aerodynamics turbine

Garrett OEM GT (BALL BEARING)

Power: 250-360 HP
Volume: 1.8-3.0

- Compressor side: TRIM 76 A/R 0.64 Inducer 54mm / Exducer 47mm
- Turbine side: TRIM 0.60 Inducer 47mm / Exducer 60mm
- Ball Bearing CHRA with water cooling (M14x1.5 water port)
- V-BAND exhaust manifold option
- Bearing housing: water and oil cooling system
